HomogenityEdgeDetector Class

Homogenity edge detector.
Inheritance Hierarchy
SystemObject
  Accord.Imaging.FiltersBaseUsingCopyPartialFilter
    Accord.Imaging.FiltersHomogenityEdgeDetector

Namespace:  Accord.Imaging.Filters
Assembly:  Accord.Imaging (in Accord.Imaging.dll) Version: 3.7.0
Syntax
public class HomogenityEdgeDetector : BaseUsingCopyPartialFilter
Request Example View Source

The HomogenityEdgeDetector type exposes the following members.

Constructors
  NameDescription
Public methodHomogenityEdgeDetector
Initializes a new instance of the HomogenityEdgeDetector class.
Top
Properties
Methods
  NameDescription
Public methodApply(Bitmap)
Apply filter to an image.
(Inherited from BaseUsingCopyPartialFilter.)
Public methodApply(BitmapData)
Apply filter to an image.
(Inherited from BaseUsingCopyPartialFilter.)
Public methodApply(UnmanagedImage)
Apply filter to an image in unmanaged memory.
(Inherited from BaseUsingCopyPartialFilter.)
Public methodApply(UnmanagedImage, UnmanagedImage)
Apply filter to an image in unmanaged memory.
(Inherited from BaseUsingCopyPartialFilter.)
Public methodApplyInPlace(Bitmap)
Apply filter to an image.
(Inherited from BaseUsingCopyPartialFilter.)
Public methodApplyInPlace(BitmapData)
Apply filter to an image.
(Inherited from BaseUsingCopyPartialFilter.)
Public methodApplyInPlace(UnmanagedImage)
Apply filter to an unmanaged image.
(Inherited from BaseUsingCopyPartialFilter.)
Public methodApplyInPlace(Bitmap, Rectangle)
Apply filter to an image or its part.
(Inherited from BaseUsingCopyPartialFilter.)
Public methodApplyInPlace(BitmapData, Rectangle)
Apply filter to an image or its part.
(Inherited from BaseUsingCopyPartialFilter.)
Public methodApplyInPlace(UnmanagedImage, Rectangle)
Apply filter to an unmanaged image or its part.
(Inherited from BaseUsingCopyPartialFilter.)
Public methodEquals
Determines whether the specified object is equal to the current object.
(Inherited from Object.)
Protected methodFinalize
Allows an object to try to free resources and perform other cleanup operations before it is reclaimed by garbage collection.
(Inherited from Object.)
Public methodGetHashCode
Serves as the default hash function.
(Inherited from Object.)
Public methodGetType
Gets the Type of the current instance.
(Inherited from Object.)
Protected methodMemberwiseClone
Creates a shallow copy of the current Object.
(Inherited from Object.)
Protected methodProcessFilter
Process the filter on the specified image.
(Overrides BaseUsingCopyPartialFilterProcessFilter(UnmanagedImage, UnmanagedImage, Rectangle).)
Public methodToString
Returns a string that represents the current object.
(Inherited from Object.)
Top
Extension Methods
  NameDescription
Public Extension MethodHasMethod
Checks whether an object implements a method with the given name.
(Defined by ExtensionMethods.)
Public Extension MethodIsEqual
Compares two objects for equality, performing an elementwise comparison if the elements are vectors or matrices.
(Defined by Matrix.)
Public Extension MethodToT
Converts an object into another type, irrespective of whether the conversion can be done at compile time or not. This can be used to convert generic types to numeric types during runtime.
(Defined by ExtensionMethods.)
Top
Remarks

The filter finds objects' edges by calculating maximum difference of processing pixel with neighboring pixels in 8 direction.

Suppose 3x3 square element of the source image (x - is currently processed pixel):

P1 P2 P3
P8  x P4
P7 P6 P5
The corresponding pixel of the result image equals to:
max( |x-P1|, |x-P2|, |x-P3|, |x-P4|,
     |x-P5|, |x-P6|, |x-P7|, |x-P8| )

The filter accepts 8 bpp grayscale images for processing.

Sample usage:

// create filter
HomogenityEdgeDetector filter = new HomogenityEdgeDetector( );
// apply the filter
filter.ApplyInPlace( image );

Initial image:

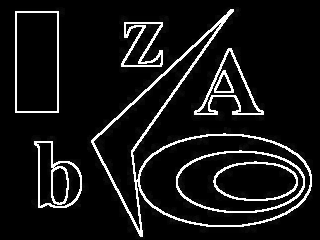

Result image:
